Project: Honderp City Turbo II - Rebuild

[Ryan]

super stuff mate, crossing all the t's and dotting all the i's - the only way to do it

just one thing, the alternator belt looks maxed out?

Cheers!

Yeah, I can see how the photos make it look that way. It's actually fine. The belt we're using is for a normal Honda City and it's just slightly too long. We can get belt tension about perfect with the alternator all the way out on its bracket, so we're going with it until we can source a better alternative.

[Ryan]

BIG NEWS. I'll rewind a bit and get up to date.



We had some delays after dropping the engine in. The fuel pump alone caused a few problems.



This is the Walbro 255 we had to fit. It was a right prick to do given the tight space.



Believe it or not there's a pump in that bird's nest of plumbing.



We used a rivnut tool to give the pump bracket something to mount to.



It took two or three proper goes and a kilo of dirt in my eyes before we got it right.



Here's me hating life. Gotta buy some safety glasses.



We only had straight fuel hose to work with, no nicely shaped factory stuff. Space was super limited and getting the pump in a spot where the hose wouldn't kink was the issue.



It looks like a mess but it's actually worked out well. I don't think there's anything we could've done to get it better.



So glad to have this done and out of the way.

The previous owners of our little City were obviously fans of using tap water instead of coolant. The giveaway was the massive amount of rust that we found throughout the radiator, hoses, water pump, engine block, head, etc. The overflow bottle was particularly gross. Here's what it looked like before.



The solution? Mix up a strong batch of oxalic acid solution (the Diggers stuff above is the acid in crystalline form) and pour it into the bottle. Wait for several days, rinse it out and you should be left with this:



Since that worked so well we did the same on our radiator hoses.



Bath time.



It was only a couple of minutes before we started to see the acid taking action.



A few days later - mint!



Driveshafts were next. We had to get these in before we could fill the gearbox with oil or else the oil leaks out of the splines where the driveshafts go.



Gear linkage all fastened and roll pin hammered into place.



Time for fluids!



Intercooler fitted.



Intake plumbing done except the airbox to turbo inlet which needs a bit of attention. Not necessary for first start.



Feels good seeing it come together.



Fresh coolant for our new radiator and refurbished overflow bottle.



And lastly a bit of 98RON to get it going.

After priming the fuel pump a bunch of times we found a couple of leaky banjo fittings in the engine bay. We tightened those up and let the fuel evaporate.

Then we double-checked nothing was blocking the fuel system by removing the return line at the tank and priming again. All good there, we've got fuel running the whole way.

With that done we turned the key. Engine turned over but wouldn't fire.

So we check spark and it's all good. There was bit of fussing around after that, taking the CAS off and rotating by hand to make sure the injectors were clicking. I took the distributor out and reset the timing according to a guide online. Double-checked the firing order and the leads were in correct order on the dizzy cap, but they started from the wrong position. Fixed that up and presto! Engine fired like a champ.



Next up we'll bleed brakes, torque the axle nuts, get an exhaust made, interior, exterior, etc. Lots to do.

Oh, and my mate Anth was kind enough to feature Honderp on build-threads.com: http://www.build-threads.com/build-t...o-ii-teardown/ - there's a few more parts to come but you've probably seen it all already.

[Apu]

Love (re)builds like this! Well done!

[felixR]

Aww yes.

[ChargeR]

Awesome work gentlemen! I hope to see it out and about soon.

[freakygeek]

Loving this. Awesome work with the coolant overflow and radiator hoses!

It's alive!! I bet that was extremely satisfying.

[Setanta]

Awesome work! Love the ideas on refurbing the coolant bottles etc.

[Ryan]

It's looking like a car again!



Updated engine bay shot featuring super rad TOP GUN spark leads. Fear the voltage. We're almost all hooked up. the intercooler shroud isn't shown, but it's now on there. We still need to fix up the airbox to turbo inlet hose and find a home for this one random wire.



Looks like it's probably an earth, but it disappears into the loom and doesn't have an obvious function. Any T2 aficionados out there want to help out?



OH YEAH. Dat roof lining. Have we already put a picture of this in here? It's gross. But also kinda funny. Anyway, it had to go.



I may never understand the motivation behind stuff like this.



Much better.



Can you feel the race car vibes?



While we're ditching things, do you remember this guy? Well I finally went at it with the angle grinder and found it a new home. Can you guess where?



In the bin, where it belongs.



Here's a bit of a look at the exhaust system. We would love to run some sort of motorcycle muffler on the back, a Yoshimura can would be perfect, but you can see why it won't work. The standard muffler with offset entry/exit sits in a very particular spot with the last bit of the exhaust running over the control arm behind the spring. It has to angle down to clear the bumper bar so we're probably going to just re-do it in the same way but with a nicer tip. If anyone in Melbourne has a hook up for exhausts we're all ears.



Next we bled the brakes. Fronts were both perfect, rear left was fine but the rear right was leaking fluid from the get go. Turns out one of the pistons in the wheel cylinder had no seal at all.



Other than that issue, the brakes actually seem okay. There's heaps of meat on the front pads and the rear shoes aren't too bad. Judging by the way it felt during the bleeding, we should end up with decent pedal feel once we track down a replacement part.



We're changing the dashboard, steering wheel and door trims, so I started pulling things apart while sitting in there pumping the brake pedal. Lots more on the interior in the next updates.



Digital dash pulled apart for some TLC. It's getting cleaned up and checked for dry joints which are apparently common.



Back half of the car is staying empty. It'll get a thorough clean and a layer of dry ice pretty soon to break up the sound deadening.



Bonnet on!



Grille on!



Starting to resemble a City again. Man that paint looks terrible in photos. Donations of elbow grease gladly accepted.

[Ryan]

Crossed heaps off the list this weekend. Not a lot of photos to show for it, but our list is getting shorter.



Finally managed to repair this bit of OEM intake pipe (the ribbed one underneath). It's an unusual shape and we had no luck finding another one. Tony suggested using this silicone tape which fuses to itself when you wrap it. After cleaning off the mountain of Sikaflex used previously, it worked nicely.



So here is the finished engine bay! Those who were expecting a factory fresh finish will be disappointed, but like we've said before that was never our intention.



This unspoken for cable is the alternator charging cable. It seems so obvious now. I thought it had to be originally, but the eyelet on the cable was unusually small - too small for the bolt on the battery terminal. But I checked it with a multimeter and sure enough, that's what it is. So I filed the eyelet out a little and fastened it all up. Feels great having everything in the 'bay accounted for after the mess we starting working on.



New wheel cylinder arrived. Here you can see Tony modelling his lovely blue handwear. Brake fluid isn't the best thing for the skin.



Pretty nasty looking drum when we took the leaky cylinder out.



Cleaned up and ready to go with the new cylinder. We bled the brakes again and ticked that off the to-dos.



Wheels on! We dropped it back onto all fours and cranked as much torque as possible into the front axle nuts then pushed it out of the garage.



Tony took the wheel for the first drive but it didn't quite go as planned. You can hear it start normally, but as soon as it's in gear with a bit of load it starts to splutter and sound like a bridge port rotary. I suspect having no exhaust is causing a few problems. There's what looks like an O2 sensor back near the firewall which has no home without an exhaust, so it's bound to be having trouble fuelling it correctly.



After the video I started it again and drove it back down the driveway into the garage. It moves okay, gearbox obviously works but we didn't find out much else about the condition of CVs, wheel bearings, brakes, etc. Next time.



Added the first of the decals today. I'm not totally happy with it. It was made to measure for the back window, but there's nowhere you can put it where it won't be in the path of the windscreen wiper so I put it on the front instead. It probably won't stay. I'll see if I can get another one made up to put on the back and we just won't use the wiper.



Last thing we did was pull the dashboard out to sort a few things. There's a big sheet of carpet insulation which needs to come out along with the A/C evaporator, some useless wiring and things like that, then the dash will be dyed black and refitted.

That's where we're at.

[Nathannnnn]

Excited to see it coming together! A suggestion with the rear window decal. how about getting it reverse printed so you can stick it to the inside of your window?? That way you can keep the wiper and not risk having the sticker coming off.

[Ryan]

Yup! I've had a mirror version made to go on the inside of the back window. Will post pics with the next update later this week. We've got a few things to check off our list before the car goes to get its exhaust done on Saturday.

[KVZT]

This is actually so awesome dude! Props with the build, hope to see some driving vids soon!

[PG_DC5]

congrats on the speedhunters main website linkup

[Ryan]

Thanks a lot!

Sorry for the radio silence lately. Honderp has been away getting some work done, but it's now back home.

Rewinding back to where we left off, I did get another Hyper Turbo decal made up in reverse so we can stick it on the inside of the rear window. I also grabbed some black vinyl so we have the option of replacing the one on the front with a solid windscreen banner like the one below.



Then little Honderp went on an excursion to the exhaust doctor.



On Friday night Tony and I tackled a few things to make sure it was ready to roll on Saturday.

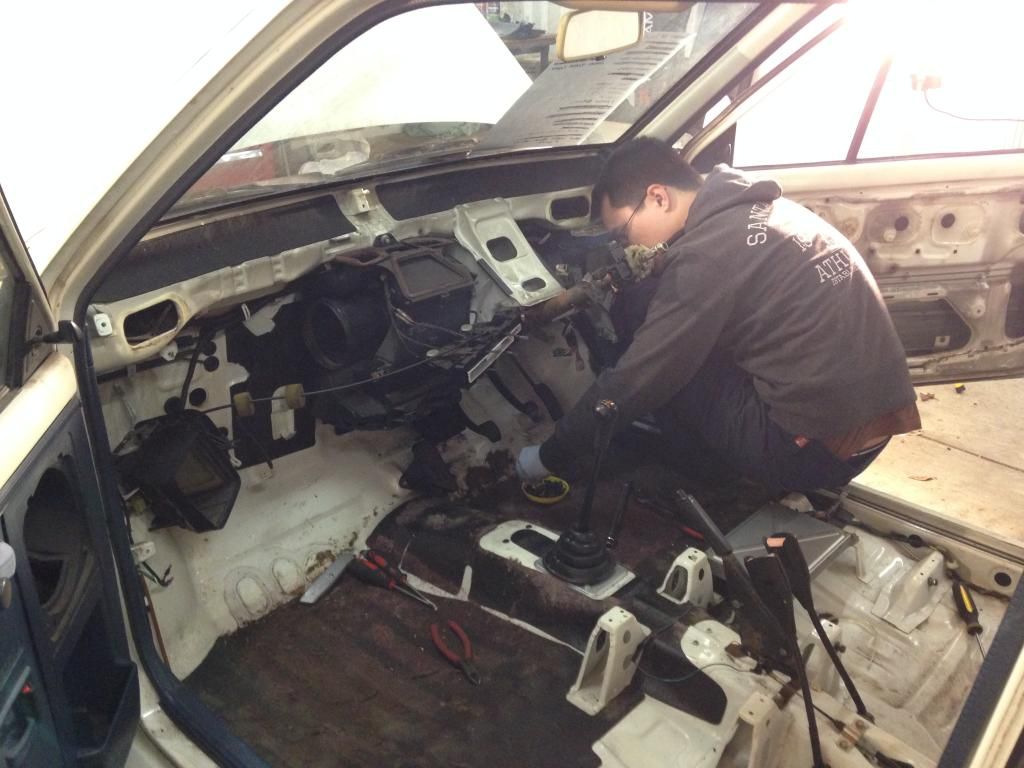

We finished removing the carpet/rubber firewall insulation stuff from behind the heater core. We refitted the fuse box, steering column, dash wiring, gauge cluster, steering wheel and driver's seat so that the car can be started and driven if running properly.

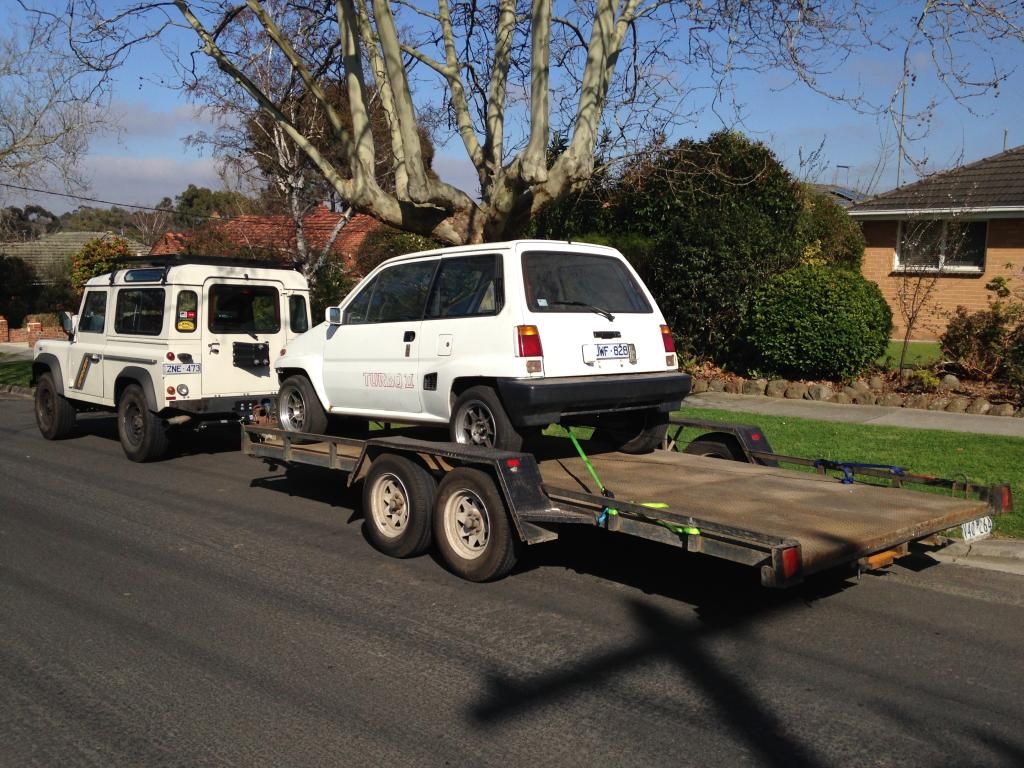

Then it was onto a trailer for the gentle drive out to Dandenong. Probs just use one of these next time we have to move it.



So kawaii!



The Land Rover Defender tow car was borrowed from a mate and it was awesome. I want one.

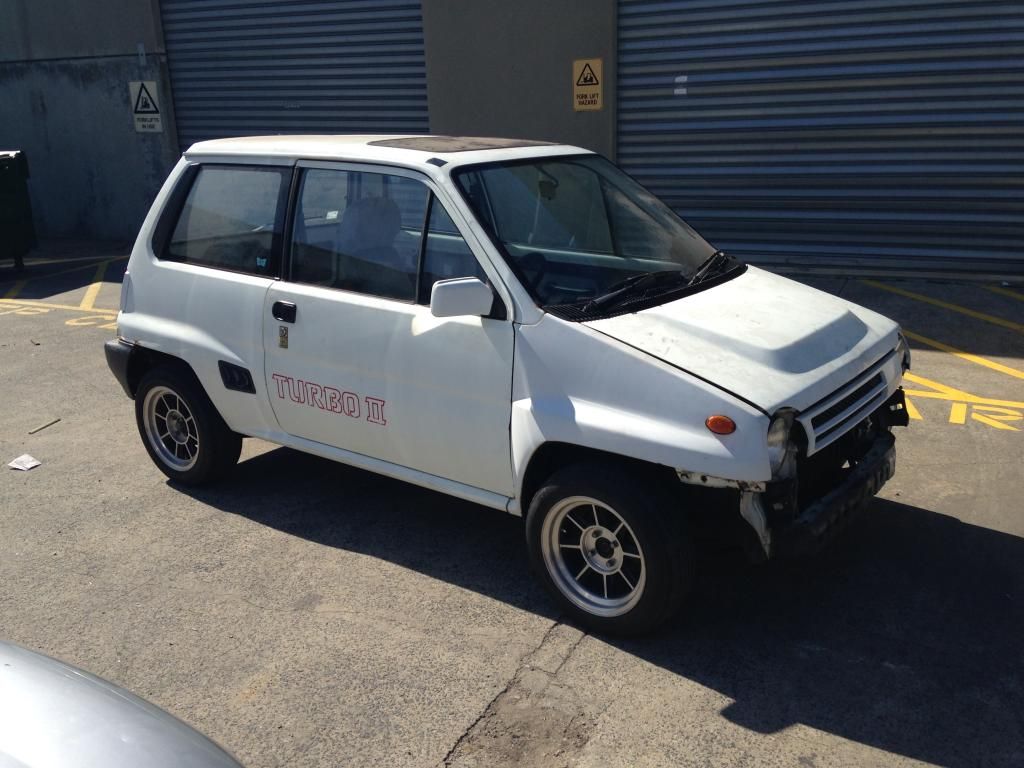

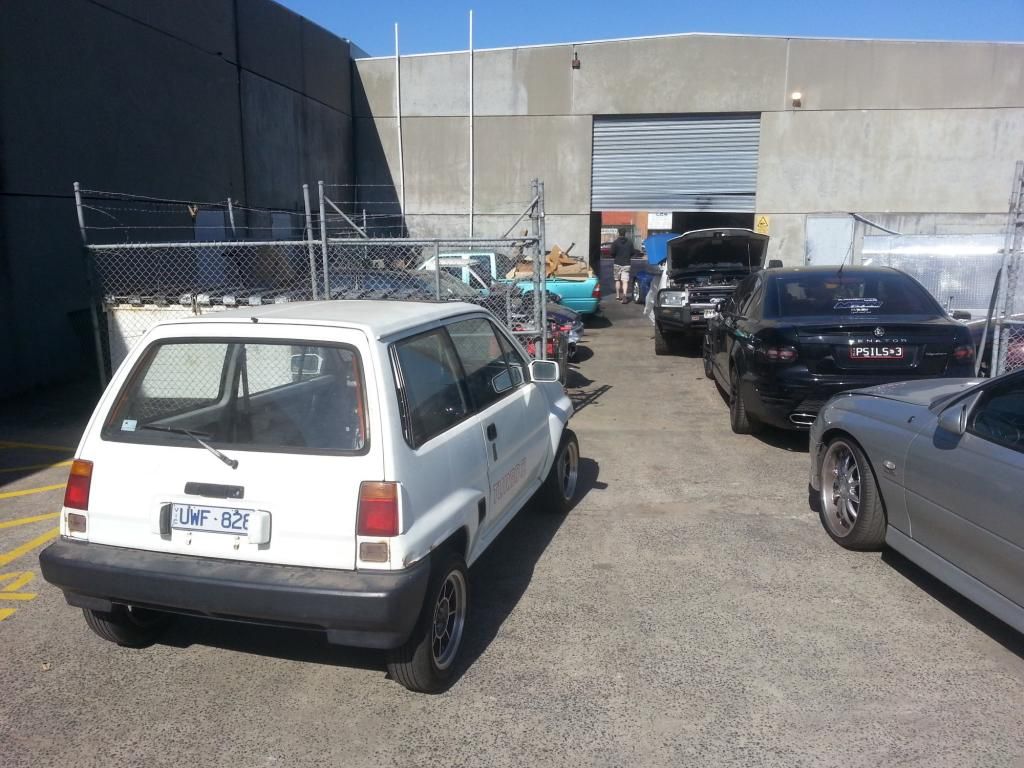

MPW is the workshop looking after the exhaust fab. I don't think our Honda could've been more out of place. There were about 20 cars in the yard and almost everything had an LS V8 in it, most of them twin turbo.



I was put in touch with Adam at MPW by an old friend in Sydney. He seemed totally cool and was happy to take care of it. All they have to do is bend and weld a short section of stainless to run from the back of the turbo down to the factory exhaust starting near the shifter.



Tony and I spent a while looking over this thing. It's a lot more interesting underneath the front clamshell than I thought it would be.

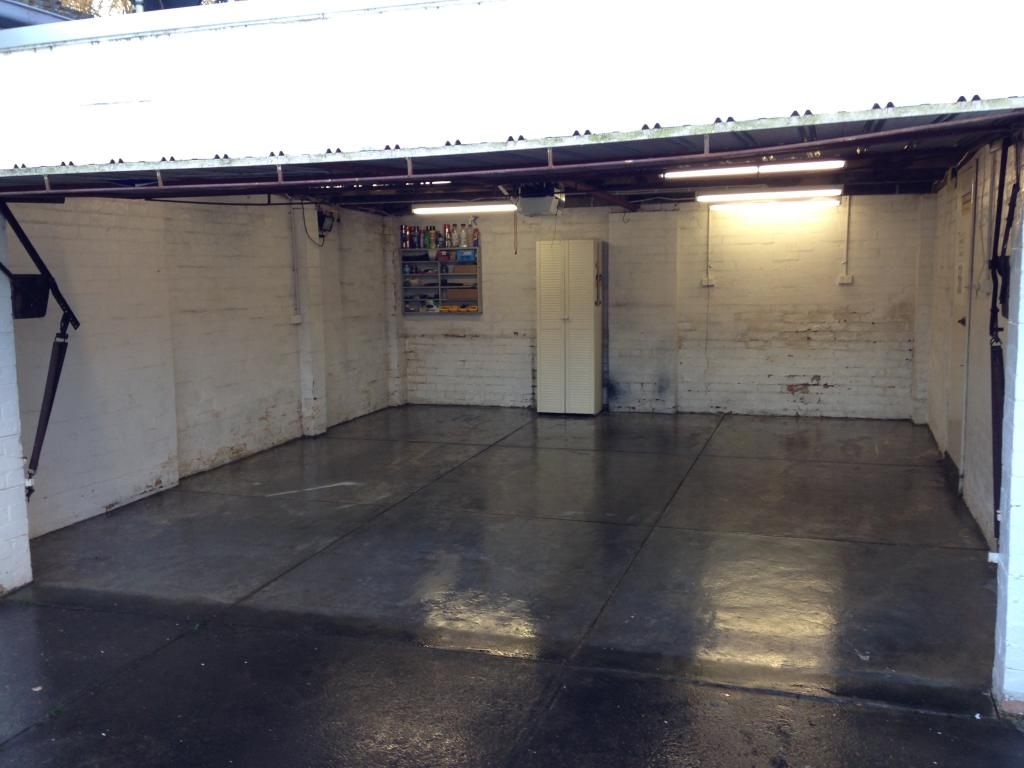

With the City out of the garage I took the opportunity to Spring clean. Clean garage clean mind!

Adam at MPW asked whether the car was running so we fired it up for him. It seems to be running really rich and that's why it's bogging down. I live in a unit and it's just too loud to keep the car running with no exhaust. We've only started the car three or four times since the rebuild. Hopefully we'll be able to spend more time diagnosing it once it's quietened down.

It took a little while longer than anticipated, but the work is now all finished. Adam really looked after us. Can't say enough good things about the bloke.

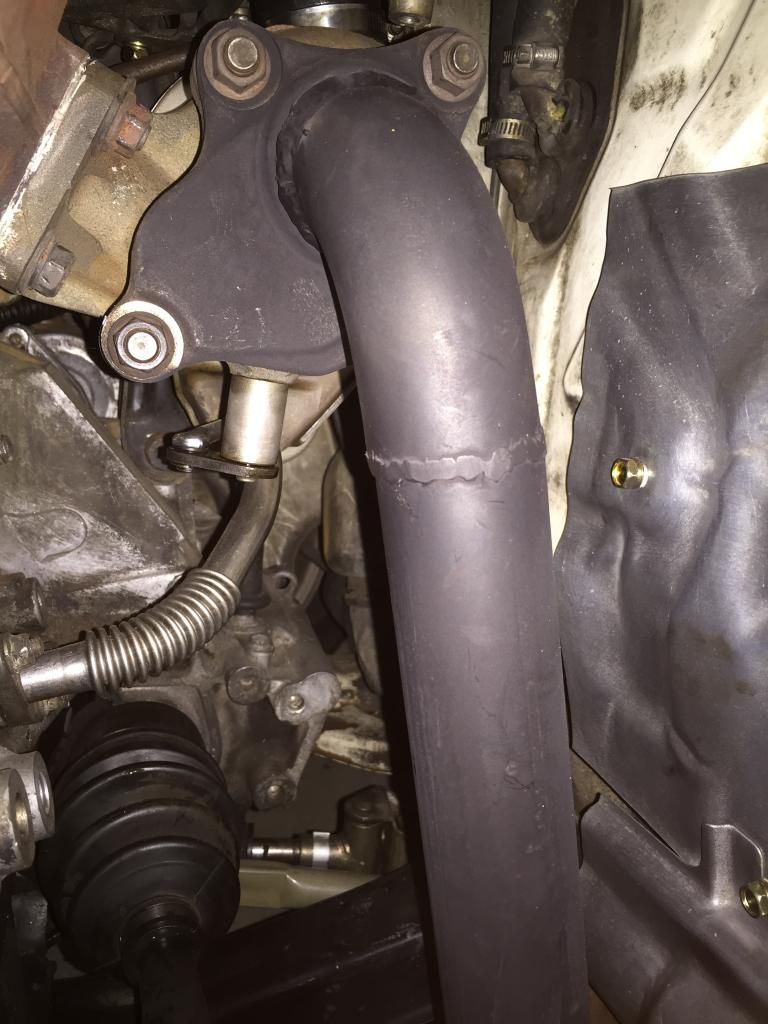

Here's the new section he made up.



We've kept the same pipe diameter as stock, but deleted the cat converter for less restriction and to reduce the weight suspended from the turbo/manifold.



The factory cat has a bracket to brace against the block, but our car didn't come with it. This seemed the better solution.

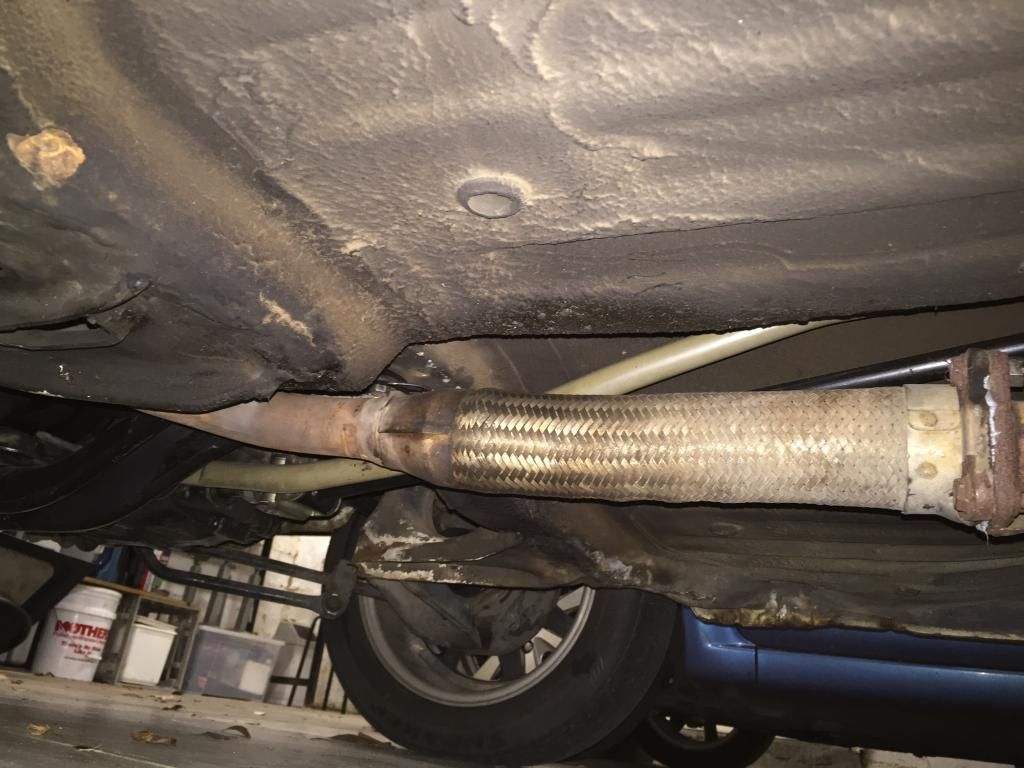

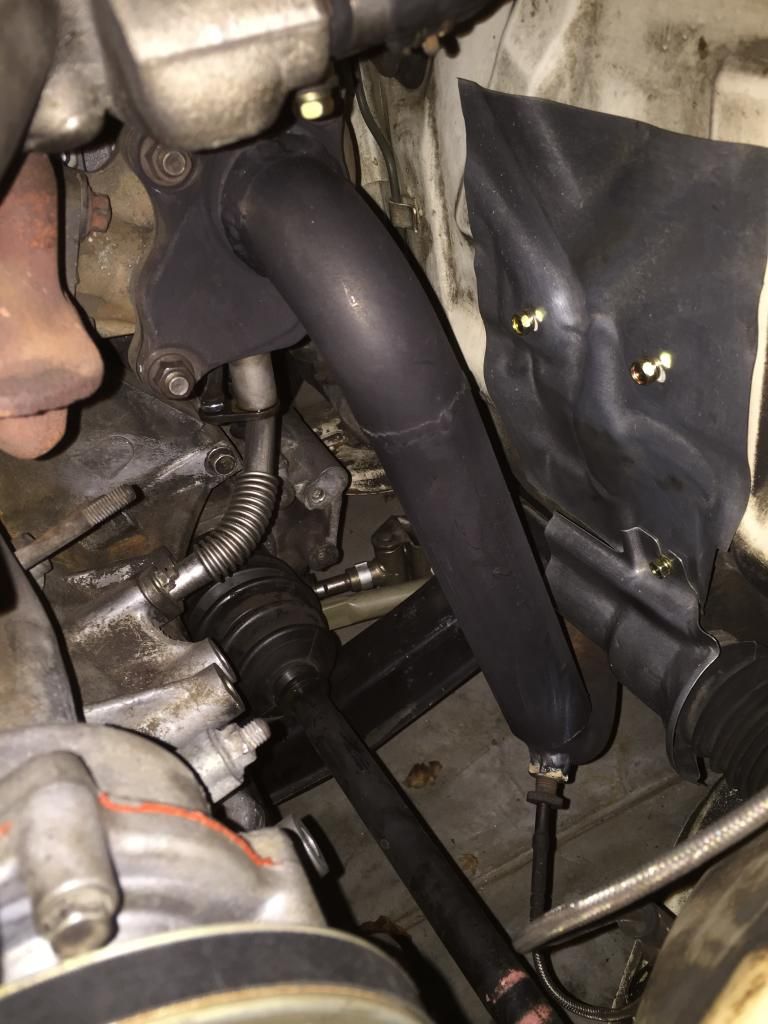

Underneath the new dump/front pipe joins the factory flex pipe and into the rest of the standard exhaust. The rear muffler is blowing a bit but that can be fixed later.



The best news is that it finally drove somewhere! It's running better than when we dropped it off, but still not sorted yet. Adam swapped a couple of vacuum lines to the fuel pressure reg but there were no obvious issues he could see.

We've got a translated vacuum diagram thanks to CityTurbo.com, so we'll start working our way through it one by one.



Other observations from the short drive:
- Rear engine mount is shot. Has to be replaced with something aftermarket.
- Gearbox and clutch feel fine. Reverse, 1st, 2nd and 3rd all good.
- Brakes works fine.
- Steering is pretty good.
- CVs and wheel bearings aren't obviously buggered.

[Setanta]

Rear engine mount: I'm pretty sure these share the same block as the EN1 out of an '80-'83 Civic. These didn't use a top mount like their sibling EB1/2/3 motors so you might be able to match them. Just a guess but I know the gearbox casing from the City Turbo matches the EN and EB Civics - just the turbo runs a CVCC head while the EB and EN ran cross-flow.
